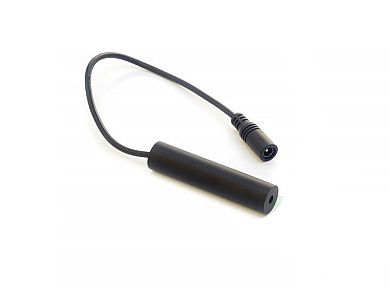

AGLL2 : Green Line Laser Module
The 532nm DPSS green line laser module is self-contained and designed for use in industrial alignment, medical and scientific applications.
It generate a visible homogenous distribution line with an aperture angle of 90° |
Specifications :
|
| |
Laser Class : |
Semiconductor (class II , IIIa or IIIb) |
|
|
|
|
| |
Wavelength: : |
532nm |
|
|
|
|
| |
Output Power : |
<1mW, <5mW, <10mW, <20mW |
|
|
|
|
| |
Output Mode : |
Continuous |
|
|
|
|
| |
Beam Divergence : |
<0.5mrd |
|
|
|
|
| |
Operating Voltage : |
3V DC |
|
|
|
|
| |
Operating current : |
300mA |
|
|
|
|
| |
Operating Temp.: : |
20°C to 30°C |
|
|
|
|
| |
Beam : |
Line, 90° fan angle |
|
|
|
|
| |
Expecting lifetime : |
> 4000 hours |
|
|
|
|
| |
Case Material : |
Metal |
|
|
|
|
| |
Length : |
80 mm |
|
|
|
|
| |
Diameter : |
20 mm |
|
|
|
| Warning! This laser emits radiation that can be harmful to the eye. Do not look directly into the laser aperture. Direct viewing of laser beam at close range may cause eye damage. (see laser classification) |
|
