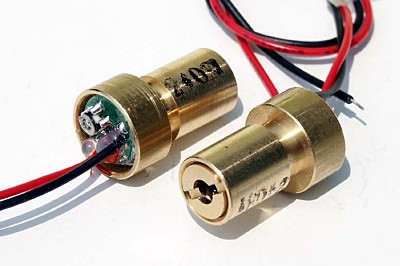

RMLW : Red Laser Diode Module
| Low cost 650nm red laser module integrates optic, laser diode and driver circuit into a brass casing for the best shock resistance and heat sink consideration. |
Specifications :

 |
| |
Laser Class: : |
Semiconductor (class II or IIIa) |
|
 |
 |
 |
| |
Wavelength: : |
650nm |
|
 |
 |
 |
| |
Output Power: : |
1mW or 3mW |
|
 |
 |
 |
| |
Optics : |
Plastic lens |
|
 |
 |
 |
| |
Operating Voltage: : |
3V DC |
|
 |
 |
 |
| |
Operating current : |
35mA |
|
 |
 |
 |
| |
Operating Temp.: : |
-10C to +40C |
|
 |
 |
 |
| |
Beam Divergence: : |
< 2.0 mrd |
|
 |
 |
 |
| |
Case Material: : |
Brass |
|
 |
 |
 |
| |
Length: : |
18 mm |
|
 |
 |
 |
| |
Diameter: : |
8.7 / 11.5 mm |
|
 |
 |
 |
| |
Wires Length: : |
120mm |
|
 |
|

| Warning! This laser emits radiation that can be harmful to the eye. Do not look directly into the laser aperture. Direct viewing of laser beam at close range may cause eye damage. (see laser classification) |
|
