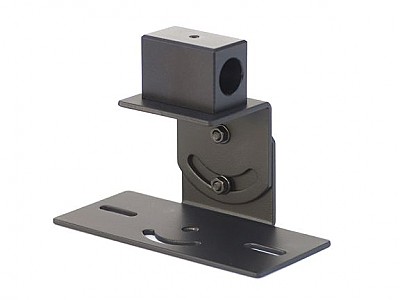

BRH : Bracket for modules laser
| This multidirectional metal mounting bracket facilitate positioning and provide additional heat sink protection to the laser diode module. Accommodates modules 12mm in diameter. Ideal for use with GM-CW02 & GM-CW02L or T-203 modules. Laser diode modules are positive to the case for optimal heat sinking. Do not mount metal brackets to the negative supply or negative earth without additional electrical isolation. |
Specifications :

 |
| |
Measurement : |
85 x 40 x 65mm |
|
 |
 |
 |
| |
|
For modules with diameter of 12 or 14mm |
|
 |
|
|
