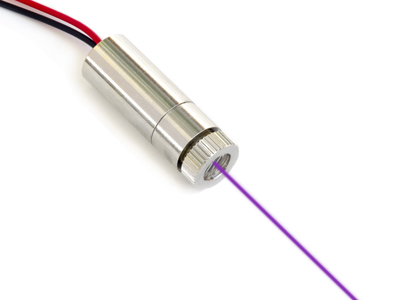

LBM : Violet Laser Diode Module
These compact and efficient 405nm violet laser diode modules are available with output powers of <5mW or <20mW. These modules are cooled through the cylindrical walls and so must be mounted in an appropriate heat sink. (recommended heatsink is HS-12, this is suitable for use with any 12mm diameter modules).
Designed as a complete laser diode solution, the 405nm laser modules are suitable for use in applications such as biomedical instrumentation, imaging, spectroscopy, laser induced fluorescence sensing, microscopy and many other emerging technologies |
Specifications :
|
| |
Laser Class : |
IIIa, IIIb |
|
|
|
|
| |
Wavelength: : |
405nm |
|
|
|
|
| |
Output Power : |
<5, <20mW |
|
|
|
|
| |
Output Mode : |
Continuous |
|
|
|
|
| |
Operating Voltage : |
3.2V DC |
|
|
|
|
| |
Operating current : |
180mA |
|
|
|
|
| |
Operating Temp.: : |
10°C à 35°C |
|
|
|
|
| |
Expecting lifetime : |
> 5000 hours |
|
|
|
|
| |
Case Material: : |
Brass |
|
|
|
|
| |
Length: : |
45 mm |
|
|
|
|
| |
Diameter: : |
12 mm |
|
|
|
| Warning! This laser emits radiation that can be harmful to the eye. Do not look directly into the laser aperture. Direct viewing of laser beam at close range may cause eye damage. (see laser classification) |
|
