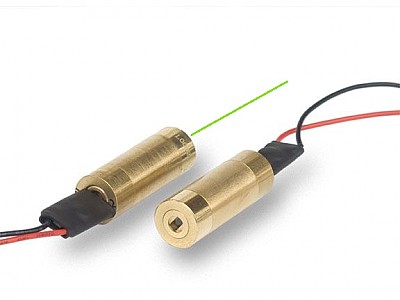

GM-CW02

Compact Green Laser Module

Add to cart

Item Descripton

Small in size and easy-to-install these laser modules incorporates driving electronics and optics in a brass casing. Ideal for alignment and positionning.
Heat sink or cooling fan highly recommended for continual operation.

Specifications

Laser Class: 2, 3R, 3B ( II, IIIa, IIIb)
Wavelength:: 532nm
Output Power: <1, <5, <10, <20, <30, <50mW
Output Mode: Continuous
Beam Divergence: <1.2mrd
Operating Voltage: 3V DC
Operating current: <300mA ( <600mA for the 50mW)
Operating Temp.:: 20°C à 30°C
Expecting lifetime: > 3000 hours
Case Material:: Brass
Length:: 30 mm
Diameter:: 12 mm
