03016AL

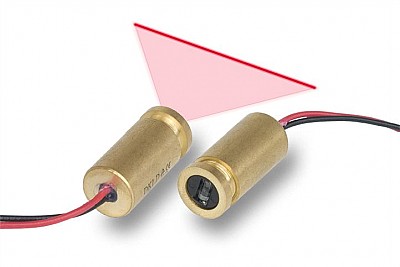

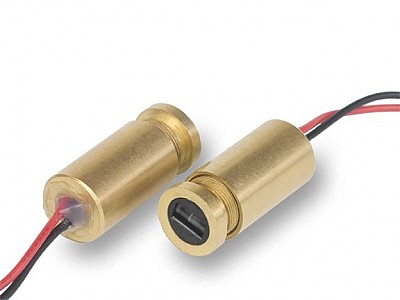

Adjustable red line laser module

Add to cart

Item Descripton

Good quality and affordable laser modules generating an accurate adjustable line.
This laser diode modules generate 90° full angle line. The glass lenses system produces an uniform intensity laser line.
It is ideal for the most demanding industrial and medical applications:
Complies with CE, FDA et RoHS regulations.

Specifications

Laser Class: 2, 3R, (II, IIIa)
Wavelength: 650nm
Output Power: <1mW, <3mW, <5mW
Optics: 2 glass lenses ( focusable)
Operating Voltage: 3V DC
Operating Current: 35mA
Operating Temp.: -10C to +40C
Beam: Line, 90° fan angle
Case Material: Brass
Length: 26 mm
Diameter: 12 mm
Wires Length: 100 mm
