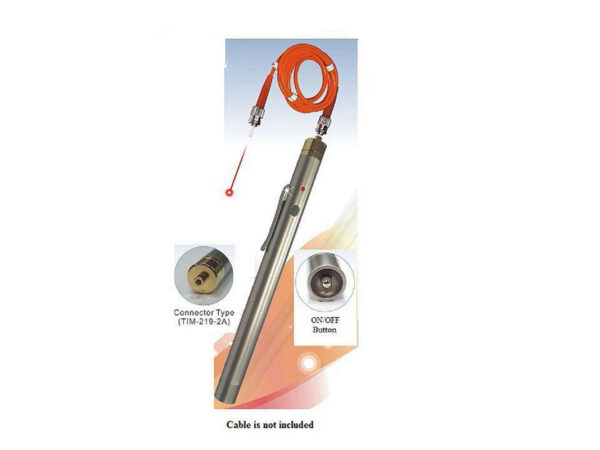

TIM-219-A : Optical Fiber Checker
This Optical Fiber Checker is a low cost and effective pen style visual fault locator.
This device is specially designed for field personnel who need an efficient and economical tool for fibre tracing, fibre routing and continuity checking in an optical network during and after installation.
The Optical Fibre Checker is powered by two AAA batteries and comes with a compact carry case. |
Specifications :
|
| |
Fiber Mode : |
Single mode fiber / Multi mode fiber |
|
|
|
|
| |
Output power : |
<0.3mW (single mode fiber) |
|
|
|
|
| |
|
<1mW ( multimode fiber ) |
|
|
|
|
| |
Wavelength : |
630 ~ 680nm |
|
|
|
|
| |
Operating mode : |
CW & Pulse |
|
|
|
|
| |
Batteries : |
2 x AAA |
|
|
|
|
| |
OperatingTemperature : |
0°C to +50°C |
|
|
|
|
| |
Storge Temperature : |
0°C to +70°C |
|
|
|
|
| |
Connector type : |
ST,SC,FC with 2.5mm ferrule |
|
|
|
|
