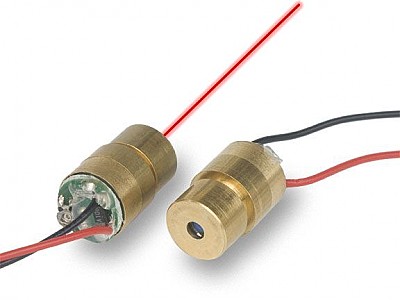

PLP : Focusable Laser Module
| This focusable laser modules consist of a brass housing, a laser diode, drive circuit and optics. To adjust the beam focus, just turn the front half of the casing. Electrical connections are made via external flying leads. |
Specifications :

 |
| |
Laser Class: : |
Semiconductor (class II or IIIa) |
|
 |
 |
 |
| |
Wavelength: : |
650nm |
|
 |
 |
 |
| |
Output Power: : |
1mW or 3mW |
|
 |
 |
 |
| |
Circuit: : |
Automatic Power Control |
|
 |
 |
 |
| |
Optics: : |
Plastic |
|
 |
 |
 |
| |
OperatingVoltage: : |
3V DC |
|
 |
 |
 |
| |
Operating current : |
35mA |
|
 |
 |
 |
| |
Operating Temp.: : |
-10C to +40C |
|
 |
 |
 |
| |
Beam diameter: : |
Adjustable |
|
 |
 |
 |
| |
Beam Divergence: : |
< 2.0 mrd |
|
 |
 |
 |
| |
Case Material: : |
Brass |
|
 |
 |
 |
| |
Length: : |
15 mm |
|
 |
 |
 |
| |
Diameter: : |
10.5 mm |
|
 |
 |
 |
| |
Wires Length: : |
120mm |
|
 |
|

| Warning! This laser emits radiation that can be harmful to the eye. Do not look directly into the laser aperture. Direct viewing of laser beam at close range may cause eye damage. (see laser classification) |
|
