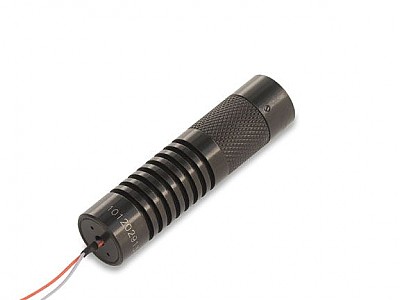

LC532-5-3F : Focusable green line laser module
| This laser module is fully self-contained with integrated laser driver circuit, surface polished glass asherical lens optics, cylindrical line generating lens and laser diode. It projects a fine adjustable line. Suitable for alignment, measurement and position sensing. |
Specifications :
|
| |
Laser Class : |
class IIIa |
|
|
|
|
| |
Wavelength: : |
532nm |
|
|
|
|
| |
Output Power : |
<5mW (CW) |
|
|
|
|
| |
Optics : |
Glass lenses with A/R coating -Ajustable focus |
|
|
|
|
| |
Beam Divergence : |
<0.4mrd |
|
|
|
|
| |
Operating Voltage : |
3V DC |
|
|
|
|
| |
Operating current : |
<300mA |
|
|
|
|
| |
Operating Temp.: : |
15°C to 30°C |
|
|
|
|
| |
Expecting lifetime : |
> 5000 hours |
|
|
|
|
| |
Case Material: : |
Brass |
|
|
|
|
| |
Length: : |
65 mm |
|
|
|
|
| |
Diameter: : |
16 mm |
|
|
|
| Warning! This laser emits radiation that can be harmful to the eye. Do not look directly into the laser aperture. Direct viewing of laser beam at close range may cause eye damage. (see laser classification) |
|
