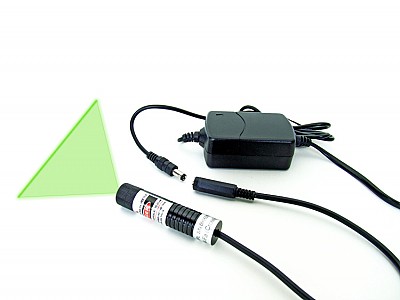

IL-532-5L : Line generator green laser module
This laser module projects a green laser line with a wavelength of 532nm. Electronics and optics have been integrated into a compact and robust brass housing of 16 x 70mm.
It comes with a 3V adaptor |
Specifications :
|
| |
Laser Class : |
Semiconductor (class IIIa) |
|
|
|
|
| |
Wavelength : |
532nm |
|
|
|
|
| |
Output Power : |
<5mW |
|
|
|
|
| |
Optics : |
Glass + A/R coating |
|
|
|
|
| |
Beam : |
Line ( 60 drgrees fan angle) |
|
|
|
|
| |
Operating Voltage : |
3V DC |
|
|
|
|
| |
Operating Current : |
500mA |
|
|
|
|
| |
Operating Temp. : |
20°C à +40°C |
|
|
|
|
| |
Case Material : |
Metal |
|
|
|
|
| |
Length : |
70 mm |
|
|
|
|
| |
Diameter : |
16 mm |
|
|
|
| Warning! This laser emits radiation that can be harmful to the eye. Do not look directly into the laser aperture. Direct viewing of laser beam at close range may cause eye damage. (see laser classification) |
|
