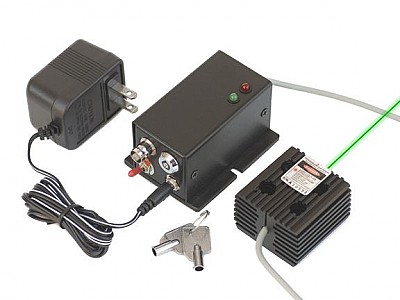

GLM-R1IB-05 : DPSS Green Laser module
| Green Laser Module with 50mm length, 20mm diameter black anodized aluminum head. Includes 9V driver box with power switch & BNC connector for TTL modulation. |
Specifications :
|
| |
Laser Class : |
Semiconductor class IIIa ou IIIb |
|
|
|
|
| |
Wavelength: : |
532nm |
|
|
|
|
| |
Output Power : |
<5mW, <10mW |
|
|
|
|
| |
Output Mode : |
Continuous |
|
|
|
|
| |
Beam Divergence : |
<1.4mrd |
|
|
|
|
| |
Operating Voltage : |
AC 110 / 240 V, DC 9 Volts |
|
|
|
|
| |
Operating current : |
650mA |
|
|
|
|
| |
Operating Temp.: : |
20°C à 30°C |
|
|
|
|
| |
Expecting lifetime : |
> 3000 hours |
|
|
|
|
| |
Case Material: : |
Anodized aluminium |
|
|
|
|
| |
Length: : |
50 mm |
|
|
|
|
| |
Diameter: : |
20 mm |
|
|
|
| Warning! This laser emits radiation that can be harmful to the eye. Do not look directly into the laser aperture. Direct viewing of laser beam at close range may cause eye damage. (see laser classification) |
|
