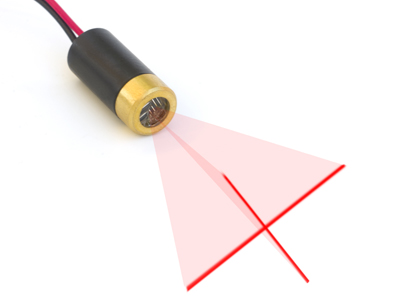

CR-60 : Crossline Laser Module
The CR-60 laser diode module generate two lines, which form a cross of laser lines. The fan angle of the cross is 45°.
It is designed for industrial applications such levelling or positionning, and is generally used where alignment by eye is required |
Specifications :
|
| |
Laser Class : |
Semiconductor (class IIIa) |
|
|
|
|
| |
Wavelength : |
635 or 650nm |
|
|
|
|
| |
Output Power : |
<3 mW |
|
|
|
|
| |
Optics : |
Plastic |
|
|
|
|
| |
Operating Voltage : |
3V DC |
|
|
|
|
| |
Operating Current : |
35mA |
|
|
|
|
| |
Operating Temp. : |
-10C to +40C |
|
|
|
|
| |
Beam : |
Crosslines 45° fan angle |
|
|
|
|
| |
Case Material : |
Metal |
|
|
|
|
| |
Length : |
22 mm |
|
|
|
|
| |
Diameter : |
10 mm |
|
|
|
|
| |
Wires Length : |
100mm |
|
|
|
| Warning! This laser emits radiation that can be harmful to the eye. Do not look directly into the laser aperture. Direct viewing of laser beam at close range may cause eye damage. (see laser classification) |
|
