03015L : Line Laser Module
This self contained laser module in plastic molded housing, generates a line with an angle of 90 degrees.
Complies with European standards CE and RoHS, and with FDA regulations. |
Specifications :
|
| |
Laser Class : |
Semiconductor (class IIIa) |
|
|
|
|
| |
Wavelength : |
650nm |
|
|
|
|
| |
Output Power : |
1 or 3mW |
|
|
|
|
| |
Optics : |
Plastic |
|
|
|
|
| |
Operating Voltage : |
3V DC |
|
|
|
|
| |
Operating Current : |
35mA |
|
|
|
|
| |
Operating Temp. : |
-10C to +40C |
|
|
|
|
| |
Beam : |
Line 90° fan angle |
|
|
|
|
| |
Case Material : |
Plastic |
|
|
|
|
| |

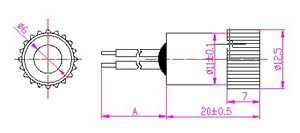

Length : |
20 mm |
|
|
|
|
| |
Diameter : |
11 / 12.5 mm |
|
|
|
|
| |
Wires Length : |
100mm |
|
|
|
|
